If you have a storage drive connected to a SATA interface, you may be interested to know that you can gain additional performance for your hard drive by activating AHCI mode. What is this mode and how to configure Windows 10 to use it? Keep reading as we will tell you how to make your non-NVMe hard drive or SSD gain performance.
Backward compatibility on the PC and its huge legacy of years of software forces many peripheral interfaces to maintain technologies and modes of operation so that they can be used with older software. This is the case of the IDE mode of SATA devices, which today is totally useless and therefore the AHCI is much better.
What is AHCI mode?
AHCI is the acronym for Advanced Host Controller Interface and it is a standard related to the SATA interface that allows programs to interact with the storage units connected to this input and output interface, whether they are solid state drives or SSDs or conventional hard drives or HDD.

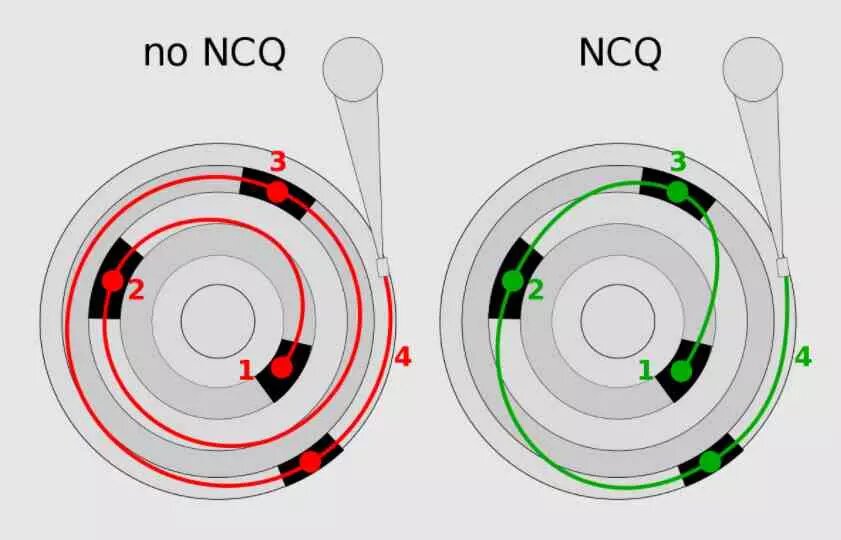

AHCI support is included in Windows operating systems from Vista onwards, replacing the old IDE and among the advantages it provides is Native Command Queuing that allows the hard disk controller to optimize read and write access to the drive by changing the order of requests to it. In other words, in a storage unit if a subsequent request points to a sector of the hard disk closer to the present than the next one then it will advance it.
Another improvement that is very important in servers is the ability to connect and disconnect storage units hot . Which means that we can change them without having to turn the server off and on, which in certain specific applications can be fatal. Imagine, for example, that you have to change the storage unit to a server that controls the traffic and with it the traffic lights of a big city.
How to activate AHCI mode?
When installing Windows, see how we have configured the SATA interface, if it sees that we have it in IDE mode then it will not install the internal drivers to communicate with the storage unit in AHCI mode. Although the access mode can be changed from the hard disk, we must bear in mind that this can lead to a general failure in the operating system. The reason for this is that we have changed the rules with which it has to communicate with the hard disk.

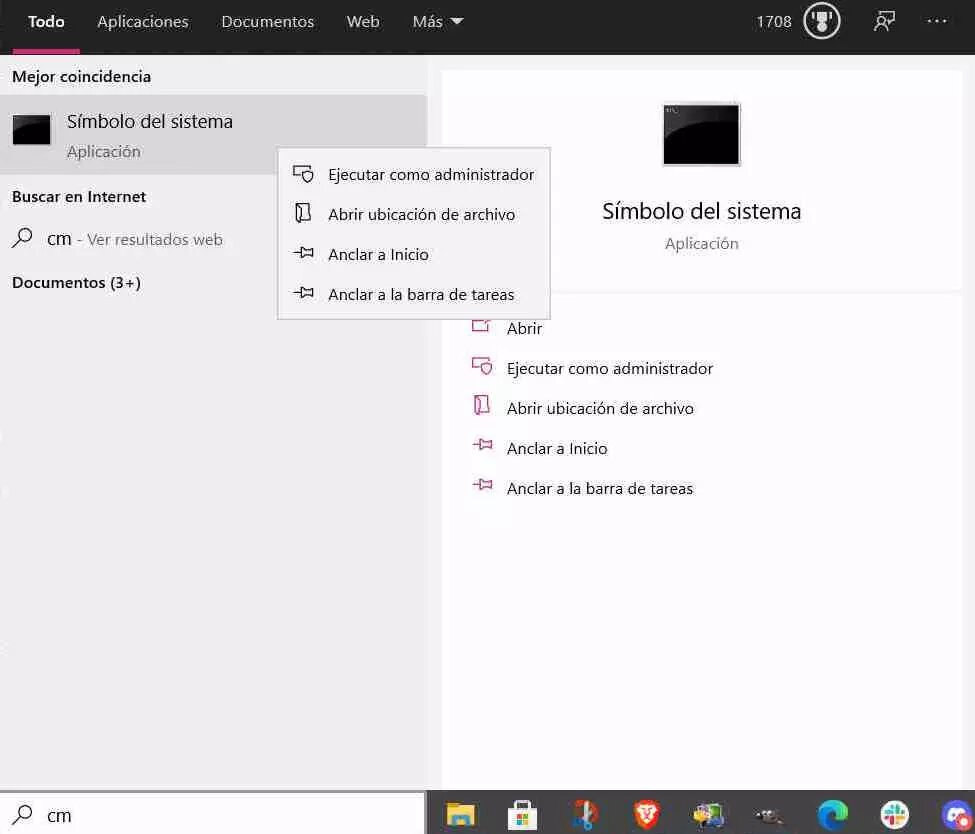

However, it is not necessary to reinstall the operating system to activate AHCI mode, for this you only have to access the command prompt as administrator.
It is important that you access with all the permissions and once inside, type the following on the command line:

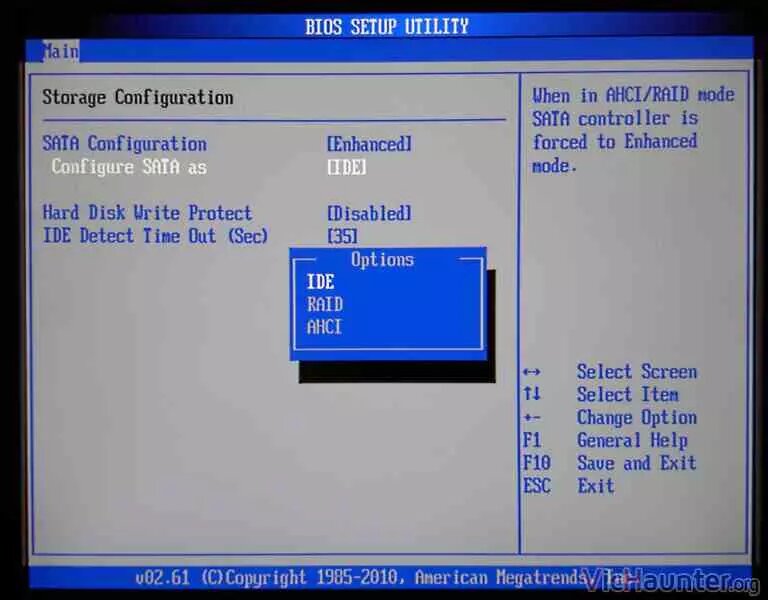

bcdedit /set {current} safeboot minimalWhat this will do is make Windows start in Safe Mode the next time it starts up again, but before that we have to do a few preliminary steps. Save all your work, close the applications and restart the computer, however, make sure to access the BIOS and from the storage options activate the AHCI mode.
Save the changes in the BIOS so that they are not lost and you will see that Windows then starts in safe mode . As you already know, in this mode the operating system loads with the minimum drivers to function and the consequence of this is that it will detect that the AHCI mode is active so it will load them. You have already managed to change from IDE mode to AHCI mode without having to reinstall Windows, however, we have not finished yet that there is no final small detail left.
Access the command prompt again as administrator and type:
bcdedit /deletevalue {current} safebootLike the other time, do not forget to press the enter key so that the command is executed, with this we deactivate always start in safe mode and you will be able to use AHCI mode in Windows 10.

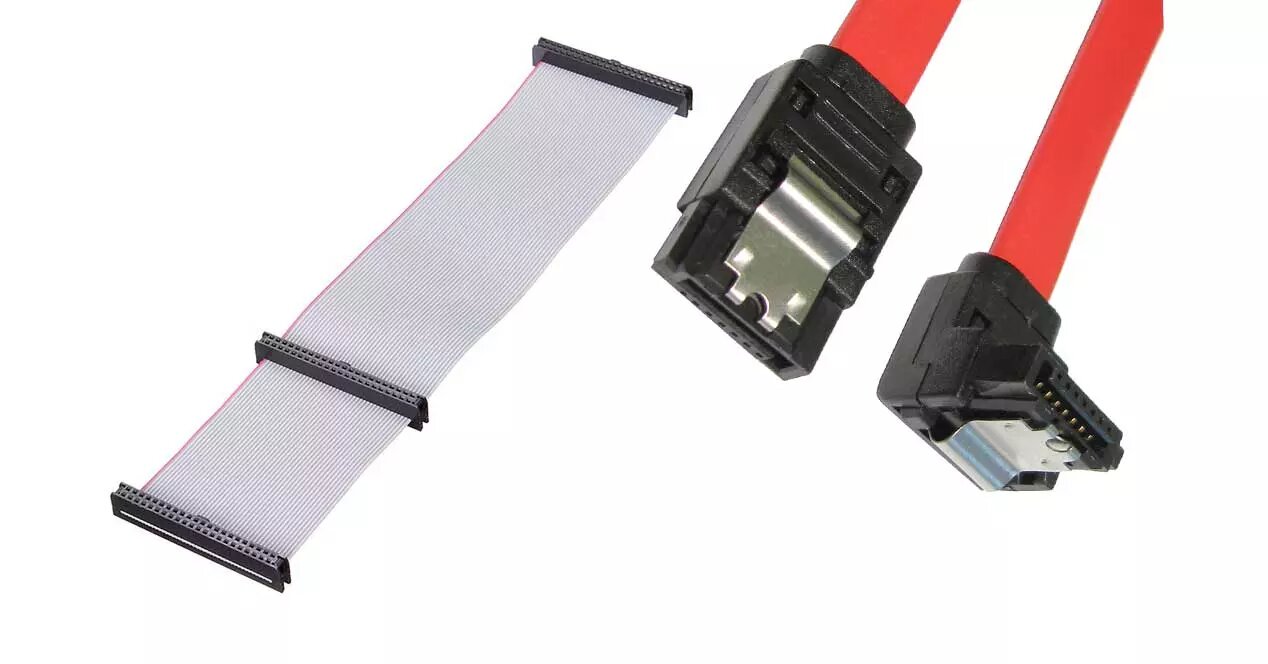

What is IDE mode for on a SATA drive?
Currently, not at all, however, if we have to work with a very old operating system such as Windows XP, keep in mind that it does not support AHCI. There are still many people who use programs on a daily basis that are necessary for their work that were not adopted to later versions of Windows or make use of a very old version of GNU / Linux that does not support it. And speaking of the penguin operating system, unlike in Windows, it will be configured in one mode or another automatically when changing the mode from the BIOS.
So the IDE mode exists for backwards compatibility and is therefore a holdover from when we had hard drives with an IDE interface. Which have been out of the market for a long time. Today it is difficult for us to find a PC that is not configured as standard in AHCI mode today, although you never know and you may find yourself with a surprise, so it never hurts to take a look at the BIOS.

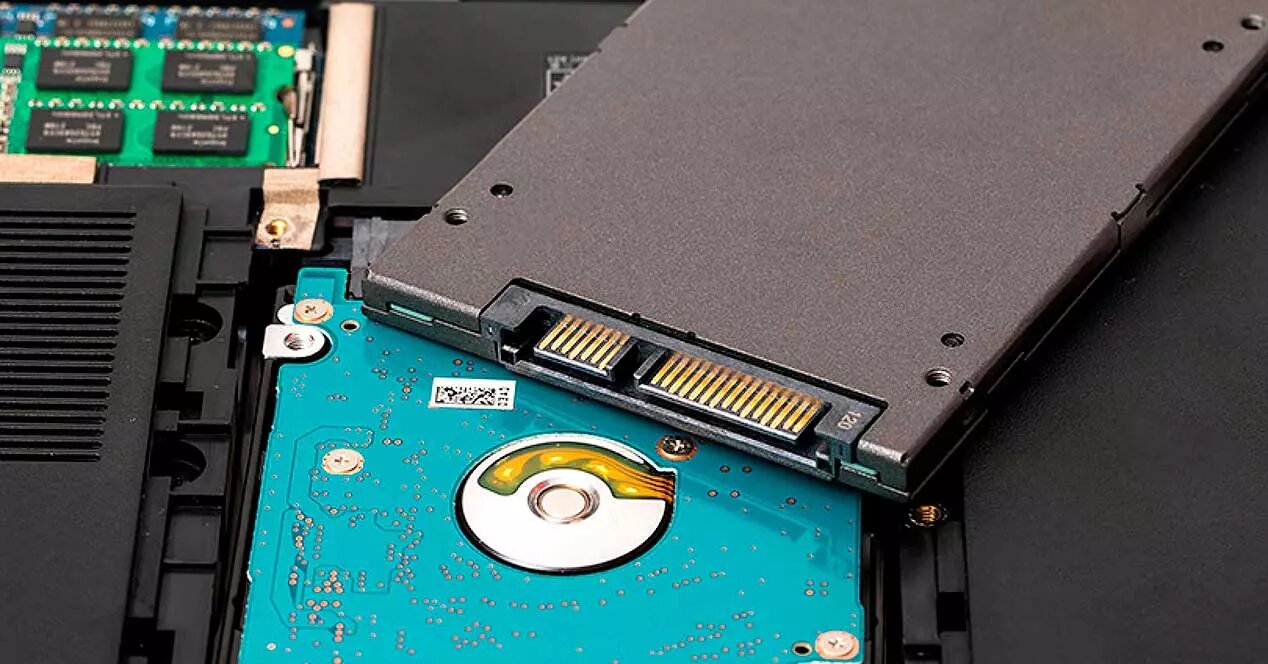

Does it make sense for SSDs? SATA
Well, we could say that in theory the advantages of AHCI are less for a solid state drive, since the latency of access to any part of it does not depend on the position in which it is. An SSD is not a disk-based drive and is not divided into sectors of different access speeds, so optimizing access according to the position of the sectors on the disk with Native Command Queuing results in nothing, rather a loss time for the SSD Flash controller, but not
However, it does have certain advantages in the SSD and the causes are at least curious, since in a solid state drive it is not the same to access the following memory address, remember that in this they work like RAM, which a another random one. In other words, the AHCI mode can overtake the sequential accesses before the others.
Be that as it may, with the SATA interface with the sword of Damocles on top and with the existence of NVMe SSDs, AHCI mode becomes a thing only for hard drives.
